Golden lotus-Mantracourt Wireless Load Instrumentation Enables Vehicle Testing

Mantracourt Electronics Ltd (Australia) – Mantracourt Electronics is a leader in high precision measurement electronics and supplies OEM sensor manufacturers and system integrators around the world with innovative and reliable measurement solutions.

This particular project in Australia is typical of how engineers at Mantracourt, in partnership with their customers, can provide working solutions to a wide variety of weighing and measurements applications.

Bạn mong muốn tìm kiếm cân công nghiệp chính hãng chất lượng cao hay cân điện tử giá rẻ, hãy cho Hoa sen vàng biết và nhận sự tư vấn nhiệt tình-chu đáo, sản phẩm đều có giá trị và đặc tính riêng của chúng … hãy Gọi ngay : 028 3511 7799 (kinh doanh) hoặc truy cập website: https://hoasenvang.com.vn/shops/ (sản phẩm)

The Project:

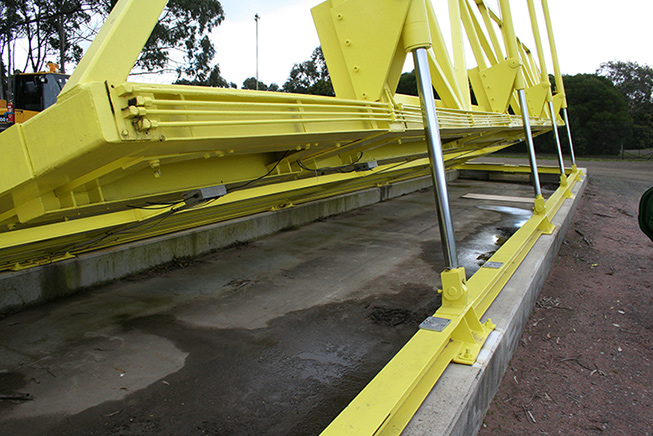

Applied Measurement Australia was approached by a vehicle-testing organisation the Australian Automotive Research Centre (AARC) to help renovate and update a Tilt Table that was used to test vehicle stability by tilting to an angle of 45º.

The test involves driving a vehicle on to the platform positioning the wheels on weigh pads. As the table is tilted using four hydraulic jacks and the load on the weigh pads is monitored until it approaches zero. This means the vehicle is near its tipping point and the platform angle is recorded.

Each weigh pad has 4 load cells, one in each corner, that are connected to a single summing box that accepts inputs from multiple load cells and combines their outputs into one output.

The existing table was mechanically functional, but the measurement system was out-dated and the load cells needed replacing and recalibrating.

he Solution:

Applied Measurements Australia serviced and replaced the load cells, as necessary.

They then looked at ways of updating the measurement system and approached Mantracourt whose T24 wireless telemetry system was ideal for the application. Initially it was the ease of set up and operation that attracted Applied Measurement to the T24 but also a wireless system was more suitable for the application environment, bearing in mind that the operators have to perform tests in all weather conditions.

T24 is a wireless telemetry system for multiple data acquisition in real time. The range comprises a versatile set of products, based around proprietary acquisition devices that can be mixed and matched to provide high quality remote readings for critical applications. The low power, battery equipped, radio units allow data collection over many years without externally supplied power and so are considerably more cost-effective than hardwired systems.

The solution was to connect each weigh pad summing box to a T24-ACMi-VA voltage acquisition module. These were then mounted to the side of the tilt table. The weigh pads were then loaded with known weights and the T24-ACMi-VA’s calibrated to give an output in kg.

In addition to the wireless load measurements system, Applied Measurement also integrated 6 Accustar inclinometers onto 6 aluminum bars with magnetic feet. Each inclinometer was integrated with a T24-ACMi-VA which measures the returned voltage which is proportional to the angle of the beam. Each beam was calibrated using a laboratory tilt table to + 45 degrees.

A laptop computer was then equipped with a T24-BSue (USB receiver base station) and Mantracourt’s logging and mapping software (T24LOG100). The inputs from the weigh pads and 6 inclinometers were configured into an on-screen representation so that they could be viewed and logged during testing.

During testing the inclinometers were mounted not only on the tilt bridge but also on the vehicle under test so that the angular difference between the tilt table and the vehicle could also be measured. This allows the user to see the effect of the suspension on different parts of the vehicle.

All data from the test was logged every second during testing to allow for analysis and compilation of a report to be given to the end customer.

Example of Test Data:

Throughout the project technical support was available from Applied Measurement Australia and from the UK based Mantracourt office. In addition a Mantracourt engineer was also available onsite to assist with initial setup and calibration.

Conclusion:

Mantracourt’s T24 wireless telemetry system is a versatile system for a wide range of applications, including those in harsh and rugged conditions. With engineering expertise and back-up from Mantracourt, wherever in the world the application is being set-up, wireless systems are easy to set up and are now becoming a viable alternative to hard wired systems.

Since this application was completed, Mantracourt has launched a new, upgraded version of T24. The new T24 improvements include a 4x increase in transmission range, improved security features and smarter diagnostics. The complete system comprises a range of transmitters, interfaces, displays and output modules that can be simply and easily configured to suit individual applications. The transmitter modules have been designed to collect data from a wide range of industrial sensors not just load but also pressure, torque, strain, temperature, pulse, potentiometer and 4-20 mA/0-10 V conditioned sensors.

For more information about the Wireless Telemetry Sensor System from Mantracourt click here.
