Creating chiliad Times sir thomas more Power with Submersible Load Measuring Pins

can dien tu hoa sen vang

Applied Measurements Ltd. (UK) – “Applied Measurements’ DBEP load measuring pins and DSCC pancake load cells were ideal to use in this marine application, as both can be readily customised, including dimensions and IP ratings, to make them fully submersible” says Ollie Morcom, Sales Director of Applied Measurements Ltd.

Ocean and tidal currents are a sustainable and reliable energy system. Minesto’s award winning product Deep Green converts tidal and ocean currents into electricity with minimal visual and environmental impact. Minesto’s Deep Green power plant is the only marine power plant that operates cost efficiently in areas with low velocity currents.



Pre-assembly of DBEP load measuring pin on Deep Green.

DBEP Load Pin:

  • Fully Customisable
  • IP68 to Depths of 6500 Metres Available!
  • Stainless Steel – Ideal for Marine Applications

Minesto needed to measure the strut force in Deep Green’s kite assembly. The measuring device needed to withstand permanent underwater submersion. “Our load measuring pin’s stainless steel construction and ability to be customised to IP68 submersion rating made this the ideal choice for use in Deep Green’s control system”, explains Ollie Morcom, Applied Measurements’ Sales Director. Their 17-4 PH stainless steel construction makes them perfect for marine and seawater applications. The DBEP load measuring pin was modified to have an IP68 protection rating to a depth of 30 metres and was fitted with a polyurethane (PUR) submersible cable and cable gland, ensuring the entire measuring system was suitable for this underwater marine application.

The load measuring pin needed to fit within Deep Green’s control measuring system. The load measuring pin’s dimensions can be customised to suit a specific design. As Deep Green needed to retain its small and lightweight construction, the DBEP load measuring pin was manufactured to their exact dimensions, ensuring that it fitted within the control assembly without adding unnecessary additional weight to the structure, thus maintaining the efficiency of the Deep Green kite.

What is Deep Green?

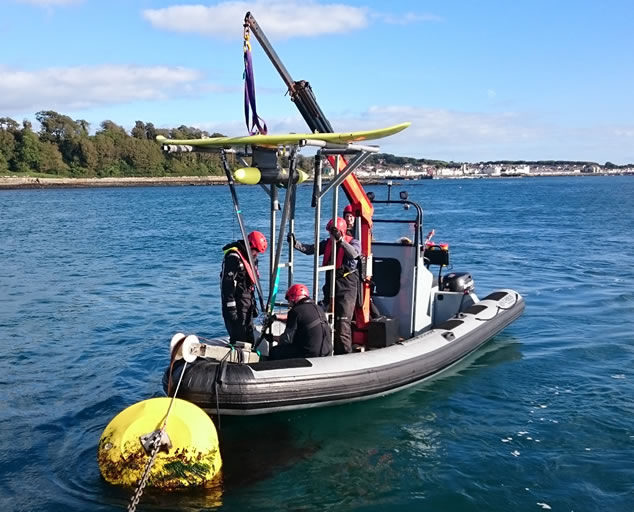

Deep Green is an underwater kite assembly with a wing and a turbine, attached by a tether to a fixed point on the ocean bed. As the water flows over the kite’s wing, the lift force from the water current pushes the kite forward. The rudder steers the kite in a figure of 8 trajectory enabling Deep Green to reach a velocity 10 times faster than the water current, generating 1000 times more power. As the water flows through the turbine, electricity is produced in the gearless generator. The electricity is transmitted through the cable in the tether and along subsea cables on the seabed to the shore. Customised versions of our DBEP load measuring pins and DSCC pancake load cells are used within the control system of the kite.

For more information about the DBEP Load Measuring Pins and DSCC Pancake Load Cells from Applied Measurements click here and here.
